How to Charge Sony SRS XB13

This piece covers How to Charge Sony SRS XB13. Do this easily through the USB power in port, behind the water resistant door, shown in the pictures below. Note that you can still play your XB13 mini speaker as it charges, without significantly increasing the recharge time.

First, pick a strong enough USB power adapter. Note that no charger comes with the Sony SRS XB13.

Next, connect a medium to high current USB-C charge cable between the speaker and that adapter. However, the speaker does comes with a short USB-C to USB-A cord).

Then, plug the charger into a working wall outlet. And after four to five hours, your XB13 finishes charging. So it’s ready to play once more for up to sixteen (16) hours before needing another recharge.

How to Charge Sony SRS XB13: Step by Step

1. Choose Correctly Sized AC or Car Adapter

Your charger should provide 5 volts and at least 0.5 amps (2.5 watts), and at most 2.4 amps (15 watts). So here we use a Key Power model HDD15-3-PD USB power delivery system.

Now as mentioned, this speaker needs roughly half an amp current to recharge fully in a reasonably short time. So this Key Power unit supplies way more than enough juice to do the job.

2. Open the Port Cover

Use a fingernail, dime, penny, or small screwdriver to work open the waterproof seal port cover on the XB13. See the closed power port door in the next picture. Be careful not to scratch the delicate seal around the inside edge of this door.

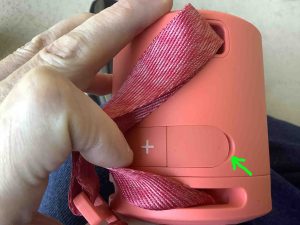

Picture of the Sony SRS XB13 port cap closed. — The Sony SRS XB13 port cap closed.

Prying open this door exposes the USB-C charging port inside, as shown next, pointed at by the green arrow.

Picture of the Sony SRS XB13 USB-C input port. — The Sony SRS XB13 USB-C input port.

3. Power OFF the Unit to Continue with How to Charge Sony SRS XB13

Note that the SRSXB13 still charges when powered ON. But the speaker might charge a little faster when OFF. So how much faster depends on the size of the charger you have.

4. Plug the USB-C Cord into the Speaker

Then, plug the matching end of a USB-C charge cable into the port, as seen in the next shot.

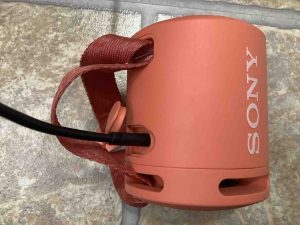

Picture of the Sony SRS XB13 charge cord inserted. — The Sony SRS XB13 charge cord inserted.

5. Plug the Other End of the USB Cable into your Charger Adapter

Furthermore, connect the matching end of the USB power cable to the AC or car adapter.

6. Plug the USB Adapter into a Working Wall Receptacle to Continue with How to Charge Sony SRS XB13

Then connect the mains end of the adapter into a working AC outlet. Thus here we plug the charger into a surge protecting power strip.

Picture of the Sony SRS XB13 charging. — The Sony SRS XB13 charging.

The status lamp lights up solid orange on the speaker. Now no battery status gauge shows percentage of charge here. But the orange glowing CHARGE lamp means that charging is occurring.

Picture of the Sony SRS XB13 -CHARGE- lamp glowing orange. — The Sony SRS XB13 -CHARGE- lamp glowing orange.

7. Let the XB13 Charge Until the Orange CHARGE Light Goes Out

Full battery charging is complete when the solid orange status lamp near the bottom turns off.

Picture of the dark -CHARGE- lamp. — The dark -CHARGE- lamp.

8. Unplug the USB-C Charge Cable from the Speaker, to Continue with How to Charge Sony SRS XB13

9. Fully Close the Port Door / Cap

Note that unless you seat the port cap securely, water may soak its USB-C charging port. Now water and electronics generally do not go well together. So getting that connector wet might damage the sensitive contacts inside. Thus be sure to firmly close the port door. Press with enough force to fully seat it, for the most moisture protection.

Picture of the port cap closed again. — The port cap closed again.

10. Done with How to Charge Sony SRS XB13

At last, we have now fully charged our XB13.

Finally, repeat this recharging every sixteen hours of play, to keep the battery in top condition for years.
